4 rollers rolling machine

Home / Product center / 4-Rollers Rolling Machine / 4 rollers rolling machine

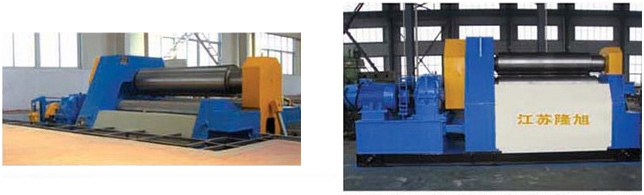

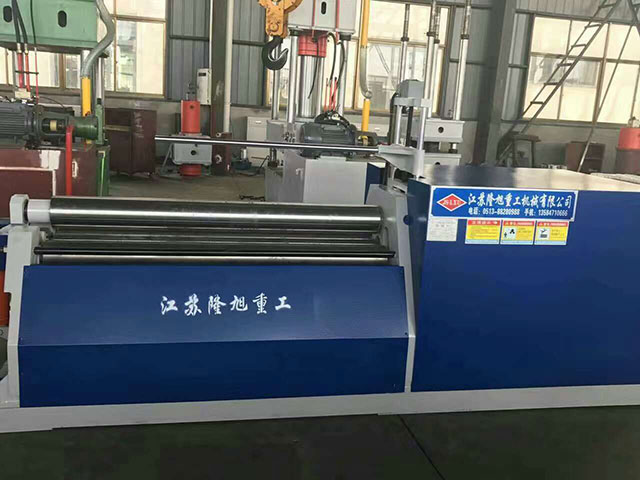

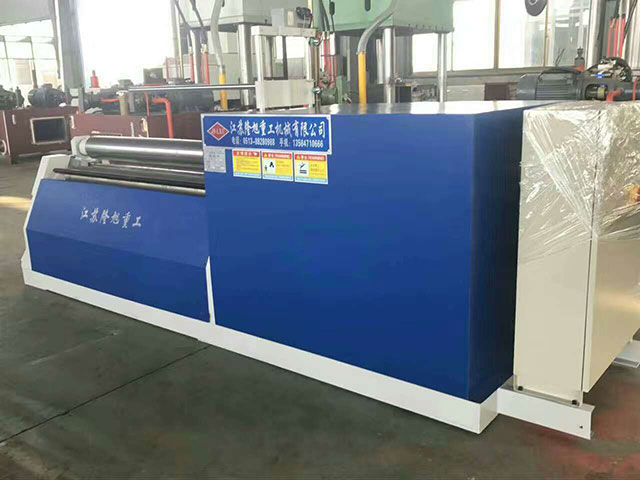

4 rollers rolling machine





 Performance:
1、Computer optimized design,3-beam,4-column structure, simple but with high performance price ratio.

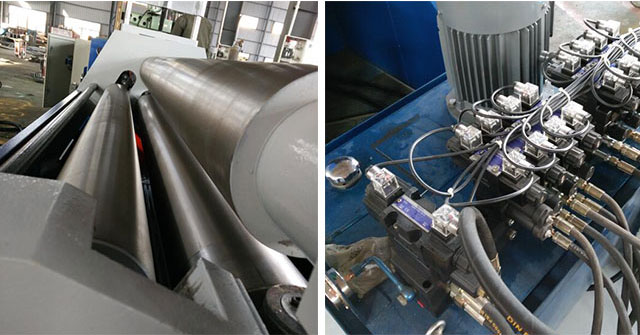

2、Cartridge valve integral unit equipped for hydraulic control system,reliable,durable, and less hydraulic shock,with shorter connection pipeline and fewer releases points.
3、Independent electrical control,reliable,audio-visual and convenient for maintenance.
4、Centralized button control system,with adjustment,hand and semi-auto operation modes at operator's choice.
5、Fixed stroke forming process or fixed pressure forming process selected through control panel,with pressure hold and time delay functions.
6、The operating force,no-load traveling and,low-speed movement and travel range can be adjusted subject to technological requirements.
Technical parameters:

规格型号 Model
卷板最大厚度Max. thick ness of coiled plate （mm）
卷板最大宽度Max. width of coiled plate （mm）
卷板屈服极限Yield ing limit of sheet meta （mm ）
卷板速度Coil ing speed （m/ min ）
满载最小直径Min. full loading diameter of coiled plate （mm）
上辊直径Diameter of upper roller （mm）
下辊直径Diameter of bottom roller （mm）

侧辊直径Diameter of side roller (mm )

侧辊最大行程Maximum stroke of side roller(mm)

侧辊调整速度Adjusting speed of side roll(m/min )
主电机功率Power of main motor （kW）
W12－25*2000
25
2000
245
4
800
350
320
240
240
80
22
W12－20*2500
20
2500
245
4
640
350
320
240
240
80
30
W12－30*2000
30
2000
245
4
1000
400
360
240
240
80
37
W12－25*2500
25
2500
245
4
800
400
360
240
240
80
37
W12－35*2000
35
2000
245
4
1200
420
380
210
210
80
37
W12－30*2500
30
2500
245
4
1000
400
360
230
230
80
37
W12－40*2000
40
2000
245
4
1400
480
400
420
420
80
45
W12－45*2000
45
2000
245
4
1600
500
450
280
280
80
45
W12－35*2500
35
2500
245
4
1200
480
400
420
420
80
45
W12－40*2500
40
2500
245
4
1400
500
450
380
380
80
45
W12－45*2500
45
2500
245
4
1600
530
480
450
450
80
63
W12－35*3000
35
3000
245
4
1200
500
450
380
380
80
45
W12－45*3000
45
3000
245
4
1600
560
500
450
450
80
63
W12－55*2500
55
2500
245
4
2000
600
550
500
500
78
75
W12－55*3000
55
3000
245
4
2000
620
560
500
500
78
75
W12－65*3000
65
3000
245
4
2400
670
600
550
550
78
110
